· PRODUCTS SPECIFICATIONS
|
Name
|

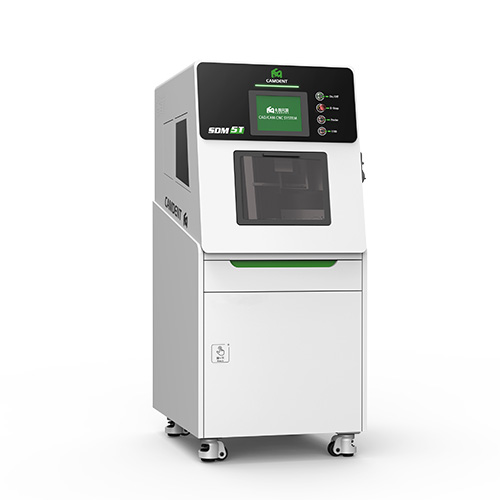

5 Axis dental CAD/CAM milling machine
|
||
|
Model
|
SDM5T
|
||
|
CNC controller
|
5 axis dental system with touch screen
|
||
|
Milling mode
|
Dry/Wet
|
||
|
Millable material
|
Titanium，Cocr，premill，GlassCeramics，Peek，Zirconia,Wax,PMMA
|
||
|
Product type
|
coping/crown,inlay/onlay,abutment /implant bridge,veneer, premilled abutment,customized abutment ,partial framework,surgical guide,model，full denture
|
||
|
Spindle power
|
3KW（4KW optional）
|
||
|
Speed of spindle
|
3000-60000rpm/min
|
||
|
X/Y/Z axis motor
|
AC servo motor
|
||
|
Spindle cooling
|
Water-cooled
|
||
|
A/B axis motor
|
100W with High precision slope gear reducer
|
||
|
Rotation range
|
A axis
|
±360°
|
|
|
B axis
|
±30°
|
||
|
Number of burs(Tools) housed
|
30pcs
|
||
|
Attachable bur(tool)
|
shank diameter
|
6mm
|
|
|
Length
|
50mm
|
||
|
Tool change and check
|
Fully automatic
|
||
|
Compatible compressed air
|
0.6MPa
|
||
|
Loadable workpiece shape
|
External Diameter
|
98mm
|
|
|
Max Height
|
30mm
|
||
|
Min. Height
|
10mm
|
||
|
External dimensions
|
Length
|
890mm
|
|
|
Weight(Depth)
|
700mm
|
||
|
Height
|
1590mm
|
||
|
Packing dimension
|
890*700*1590mm
|
||
|
Weight
|
380kg
|
||
|
G.weight
|
440kg
|
||
|
Input Voltage
|
Single-phase 220V 50Hz/60Hz
|
||
|
Control command set
|
NC code
|
||
|
Positioning accuracy
|
±0.02mm
|
||
|
Average milling time (dental crown)
|
Zirconia
|
min
|
|
|
Wax
|
min
|
||
|
PMMA
|
min
|
||
|
|
|
|
|
Key features
Compact structure
-- compact size 620mm*500mm*650mm
